14. IDLE LlFTING SWITCH

(applies only to K4A Automatic Transmission)

Function

The idle lifting switch controls the two-way solenoid on top of the automatic transmission.

Problems

If the idle lifting switch is not operating or adjusted properly, the results can be:

1. Slipping of the transmission on acceleration.

2. Very rough downshift of the transmission.

3. Damage to the transmission.

Adjustment

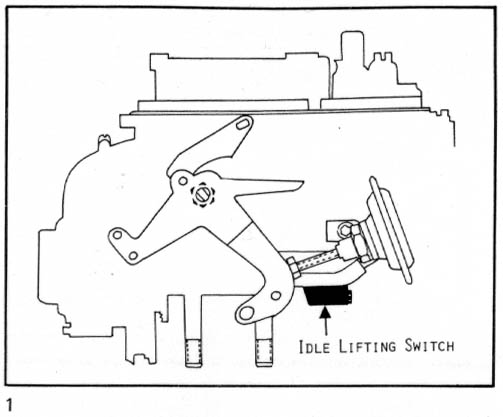

1. Attach a test light from outlet terminal of switch to ground. (See Fig. 1)

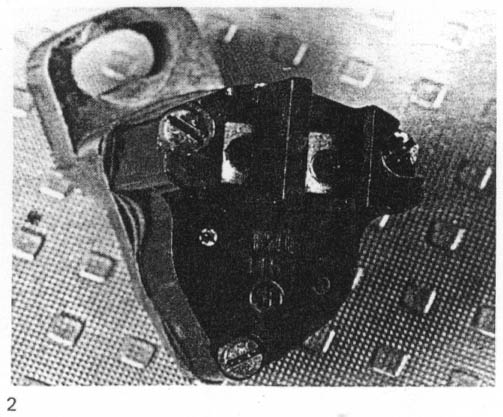

2. Accelerate slowly while observing light. (See Fig. 2)

3. Adjust switch as necessary by loosening the mounting screws and pivoting switch until light goes out (switch opens) at between 1400 to 1600 RPM.
